gmi Monolith dual connection implants

gmi monolith dual connection implants are machined in c.p. grade IV titanium of the highest quality, thus ensuring a high chemical stability and excellent biocompatibility. The titanium oxide layer, that is formed on the implant surface after the passivation process, and the careful design of the outer surface of the thread, guarantee good osseointegration and high primary stability.

The external dual inlet thread of the implant helps to reduce surgery time. Moreover, self-threading millings and slight tapering facilitate implant insertion, reducing tension at the bone-implant interface and thus preventing threading stress-related problems.

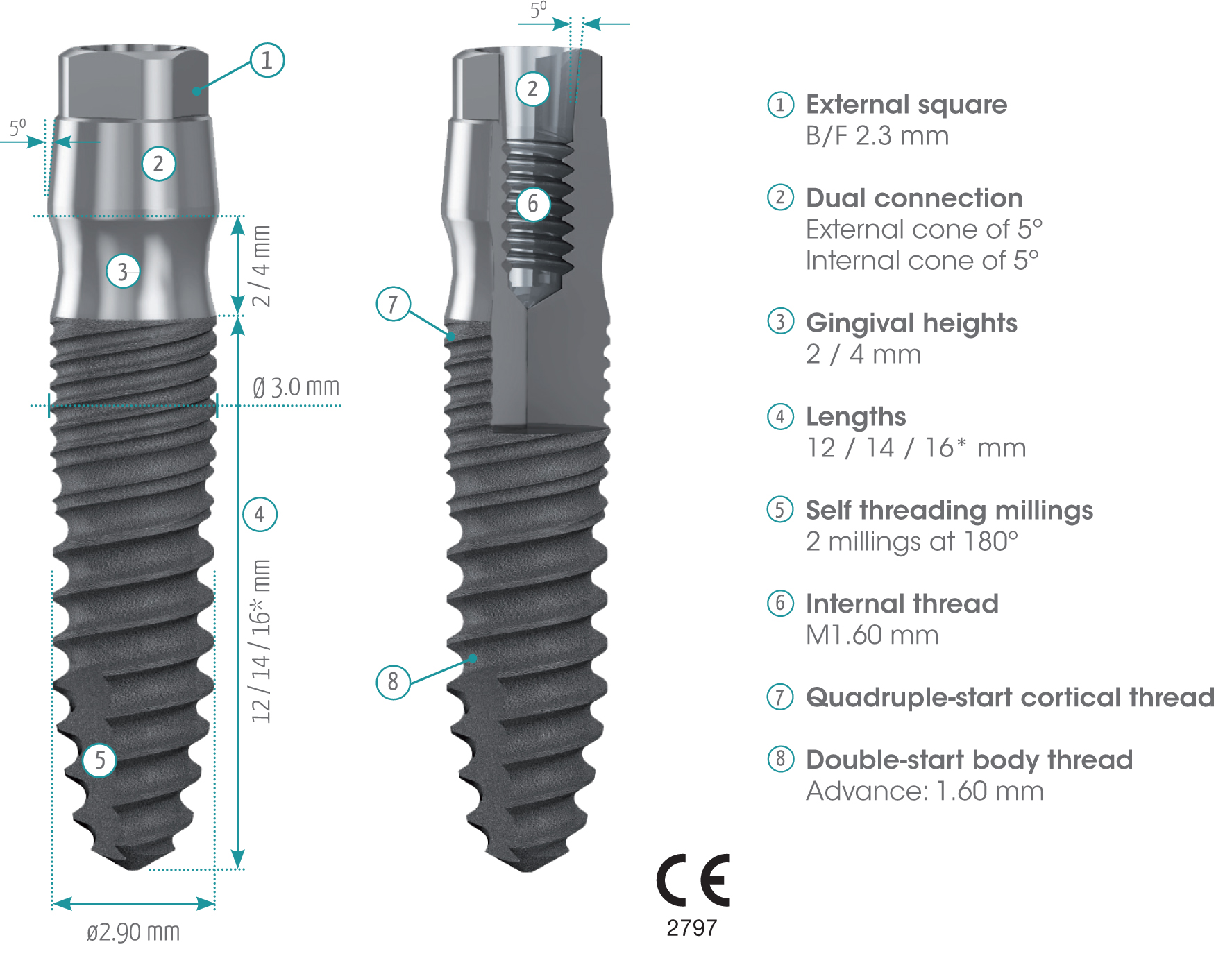

Caracteristicas-monolith-EN



* The real length of the implant is 2 mm shorter than its description.


ADS® surface treatment

To promote the adhesion and growth of bone cells, the outer surface of the implant has been treated with the exclusive ADS® treatment (Advanced Double-Grip Surface) which combines a white corundum micro-bubble treatment and acid etching, for a non-smooth roughness that maximizes the contact surface between implant and bone and therefore improves stability and adhesion between them.

ADS-1

The ADS® treatment is the result of a series of collaborations with institutes and universities, as well as our own research and tests, that allow us to monitor and validate the optimal biological response to the implant surface: chemical (X-ray scattering studies to find out the composition of the implant and its surface) and topography studies (roughness studies) have been carried out, as well as biological (in vivo response studies in animals) and clinical studies.



Composition studies

X-ray scattering studies show that the surface of the implants is only made of titanium and oxygen, which are the basic components of the oxide layer that is formed in the implant passivation process and that gives it its excellent corrosion resistance.





Surface topography studies

In order to control and identify the topography of the implant surface, roughness studies were performed with profilometer, as well as with techniques such as SEM (Scanning Electron Microscope) and CLSM (Confocal Laser Scanning Microscope), allowing to obtain and control the mean roughness (Ra) values within the parameters recommended in international publications.

grafica

Roughness profile obtained with HOMMEL-WERKE T1000



Osseointegration studies

To determine the biological response of gmi implants, in vivo studies were conducted by inserting the implants on animals, leaving them without load during the healing process and performing a histological study to prove the excellent response of the bone cells and the complete osseointegration of the implant.

ADS-2

SEM-BSE: Ultrastructural details of cells in biofilm on the implant.

gmi monolith dual connection implants are packed in a screen-printed cardboard box, with three traceability labels and a double packaging containing the implant system, with the secondary packaging made of technical plastic and the primary packaging made of Pyrex glass to ensure the inert performance of the container. Once packaged in a clean room, they are sterilized with gamma radiation according to regulations.

The packaging system of the gmi monolith implants consists of a titanium support which houses the implant-implant carrier set, prepared to be inserted directly into the mouth, using a single hex-2.50 mm implant carrier wrench, designed for this purpose. This new system offers the odontologist the following advantages: more control and a better view of the implant insertion process, it is easier to use in reduced interdental spaces and a reduction in surgery time.*



Protocolo insercion Monolith



*   See the instructions for use in electronic format.

1. Check sticker indicating implant length and open the tab on the carton.
2. Remove the secondary packaging and product identification labels.
3. Check the integrity of the safety seal and unscrew the plug on the secondary packaging.
4. Remove the primary packaging from the secondary packaging avoiding hitting it against a hard surface.
5. Extract primary plug making a lateral movement.
6. Insert the implant carrier wrench until a slight retention is noticed, addressingthe faces of the key with the faces of the implant carrier hex broaching.
7. Check that the key is fully inserted and turn slightly while gently pulling on the assembly.
8. Place the implant in the bone bed by applying a maximun torque of 35 N·cm until the treated area is at the crestal or subcrestal level. Remove the key.
9. Untighten screw using HEX-1.20 mm wrench and remove it from the implant carrier.
10. Introduce the extraction wrench and remove the implant carrier.

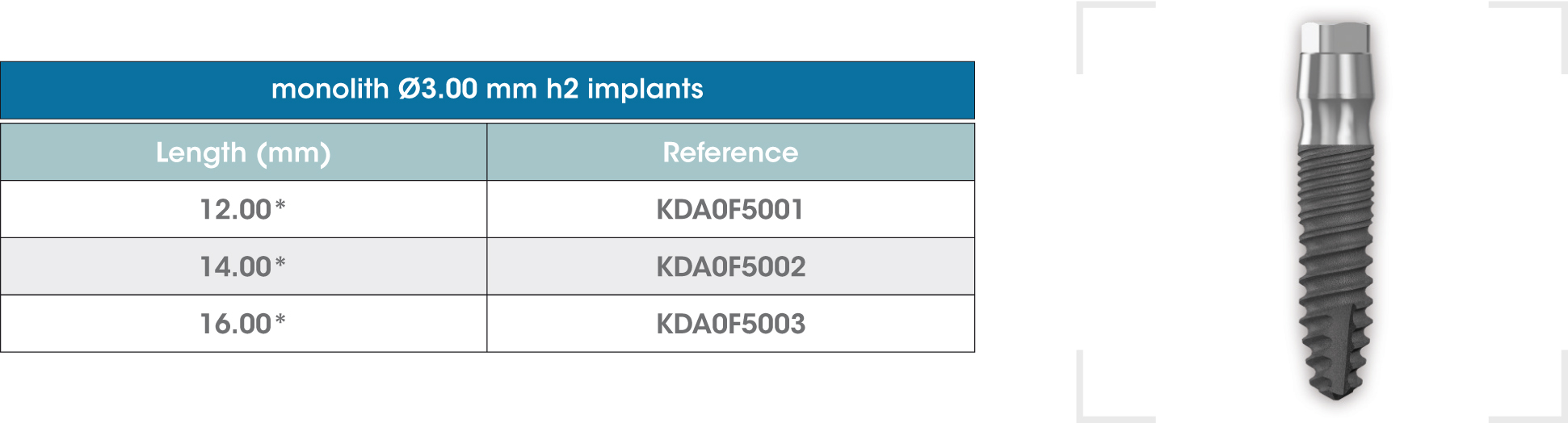

monolith h2-EN

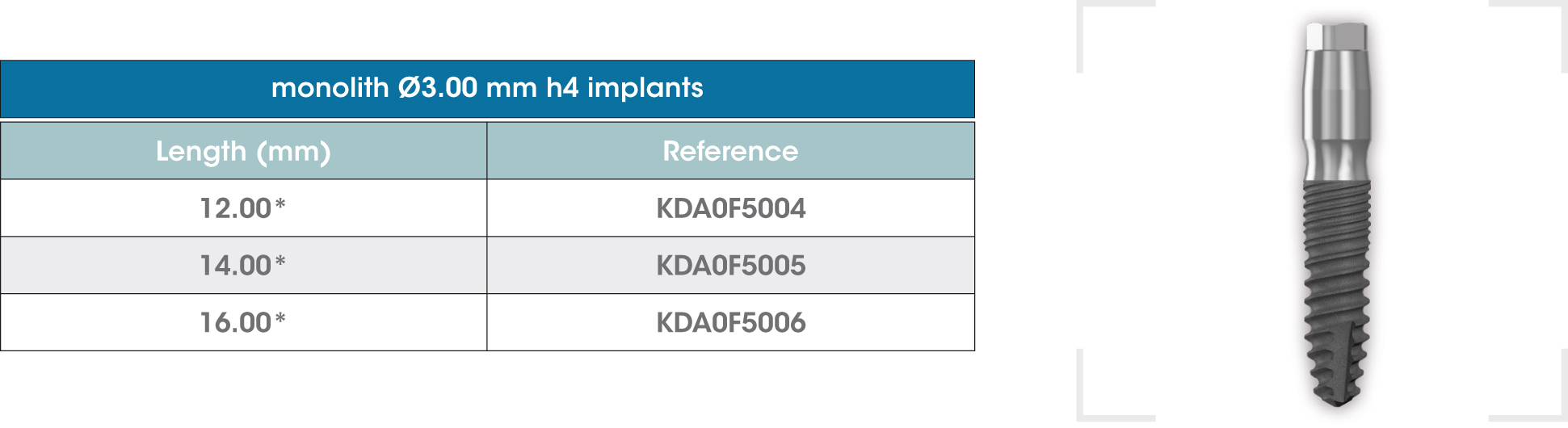

monolith h4-EN

 * The real length of the implant is 2 mm shorter than its description.


The following is a description of the drilling sequences and the recommended drilling conditions for their use:

• Lance-shaped: 1,200 - 1,500 rpm.
• Step drills:

- ø2.00 / Ø2.50 mm: 900 - 1,200 rpm.
- ø2.50 / ø2.80 mm: 500 - 700 rpm.


        • For drilling, external cooling with saline solution is required.

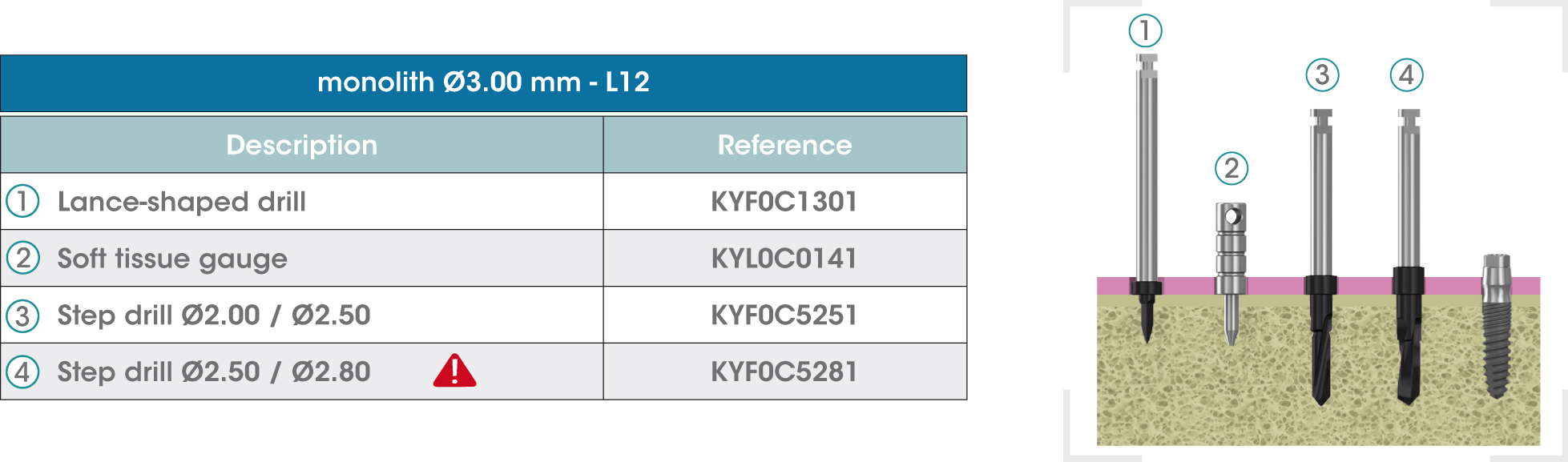

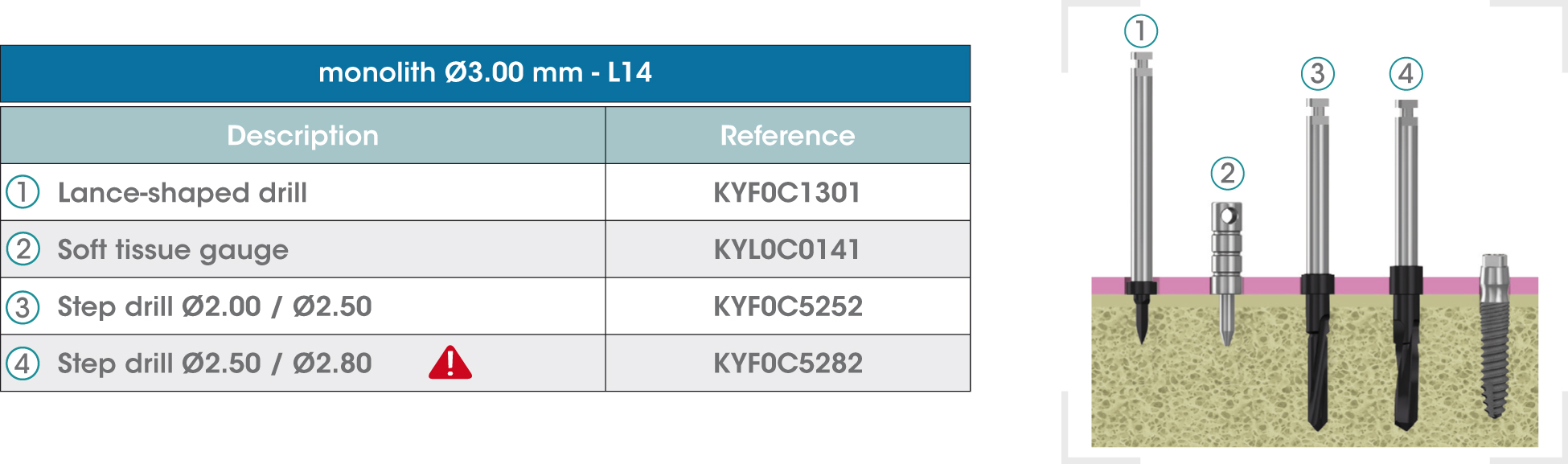

Fresado-monolithL12-EN



Fresado-monolithL14-EN

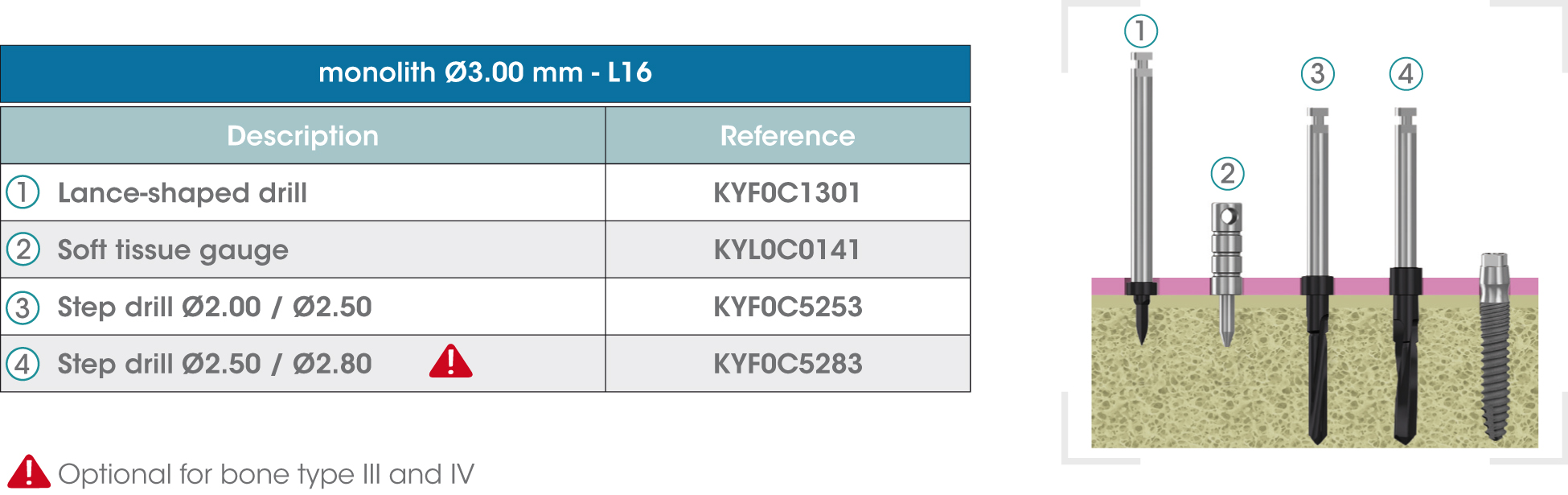

Fresado-monolithL16-EN



* Procedure recommended by GMI cannot replace the judgment and the experience of the surgeon.

The gmi monolith implant system was designed and tested to be used through one-stage surgery in upper or lower jaw in cases of total or partial edentulism or in cases of loss of isolated teeth (single restoration), with a 12-degree maximum inclination to the perpendicular plane to the occlusal plane, in accordance with the following diagram.

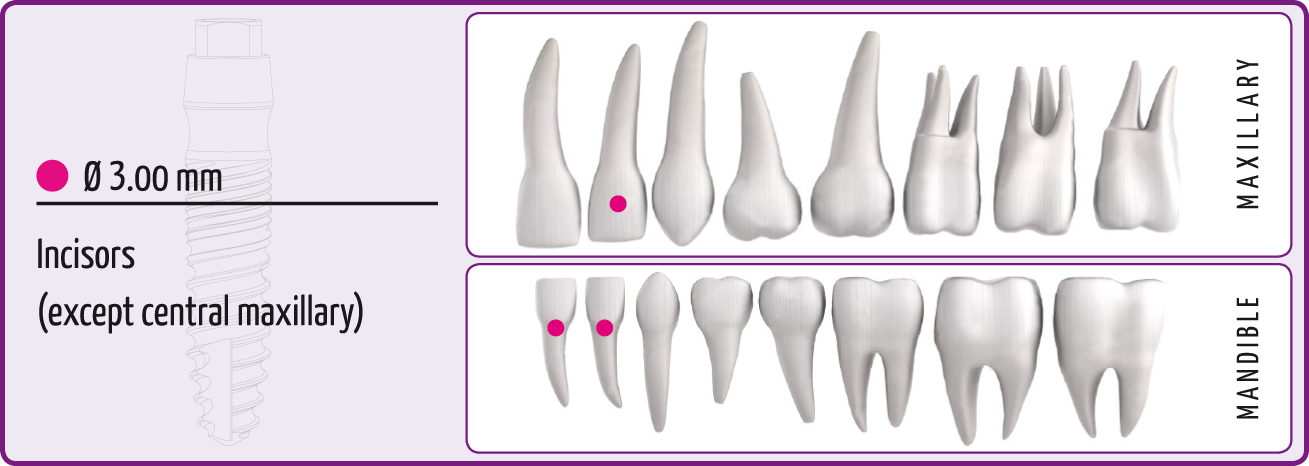

     Recomendaciones-monolith-EN



The gmi monolith implant system allows performing the following restorations:

 - Unitary cemented restorations of mandibular or maxillar lateral incisive. For these cases, h=2 mm implant must be used.

 - Multiple cemented restorations of small bridges with splinted implants in incisive. For these cases, h=2 mm implant must be used.

 - Stabilization of implant-retained and tissue-supported overdentures. For these cases, h=2 mm and h=4 mm implants can be used.



The gmi monolith implant range is designed to be inserted applying a 35-40 N·cm torque, although it can bear a maximum tightening torque of a 60 N·cm. gmi recommends manual insertion of the implant with a dynamometric ratchet wrench to ensure that these values are not exceeded.



The gmi monolith range of implants and prosthetic attachments are designed and manufactured with tolerances intended to maintain adjustments that minimize the clearance between components and therefore guarantee the stability of the connection. gmi recommends the use of original attachments to ensure a perfect fit between the components of the restoration.



To prevent prior deformation of the clinic screw, gmi recommends restricting its use only for the final tightening of the prosthesis. To make adjustments during the prosthetic procedures, use of the laboratory screw is recommended.



Dibuixos-monolith

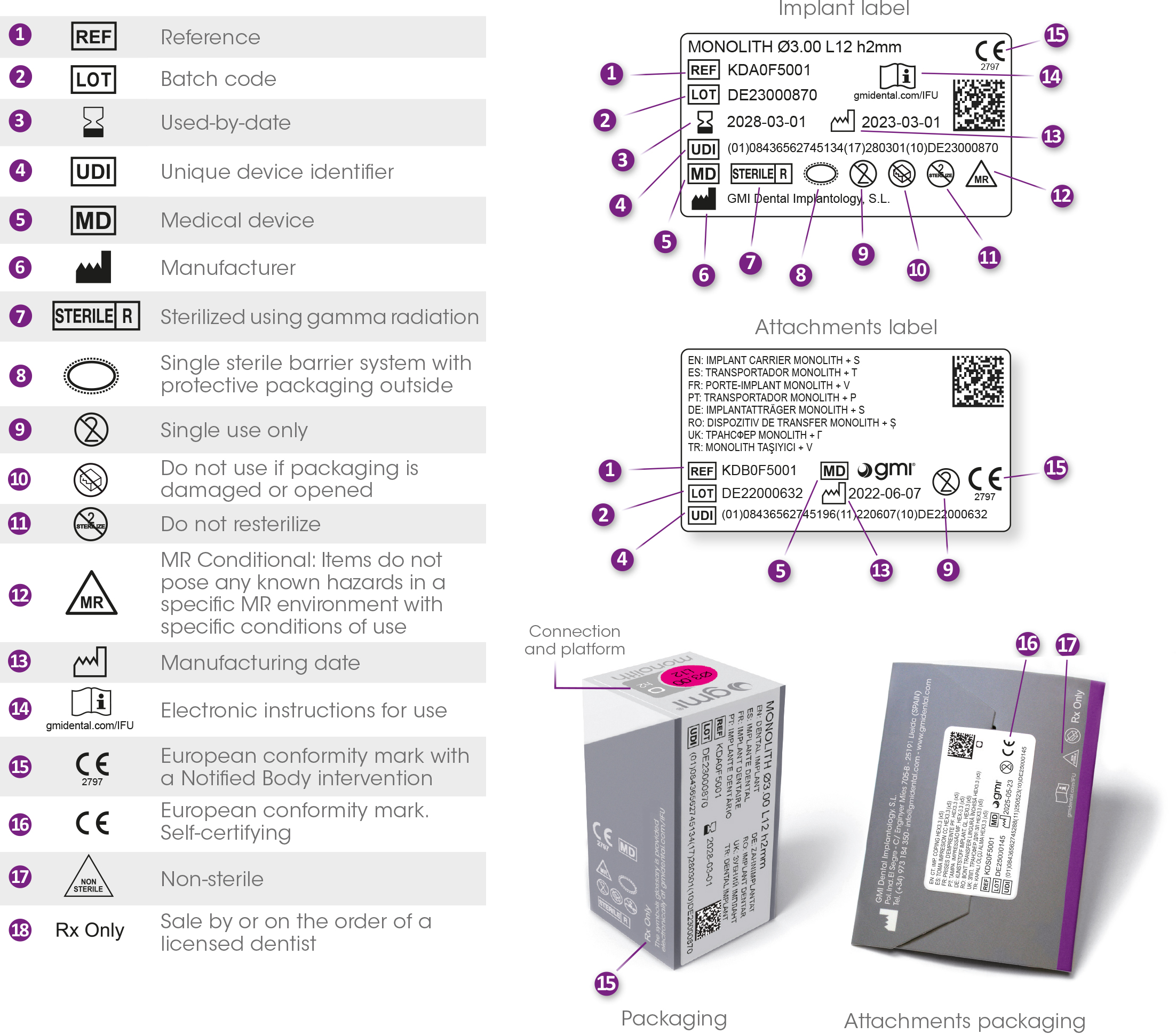

In the chart are detailed all the symbols appearing on the gmi monolith implant system's labelling and packaging and their corresponding description.

Desc etiquetado monolith nou EN

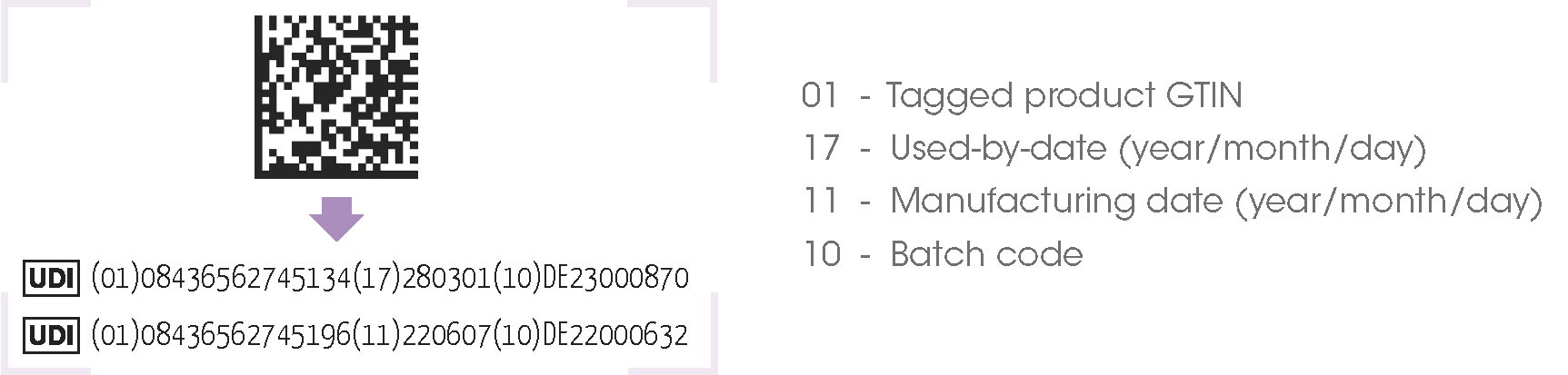

DataMatrix specifications of labels:

DataMatrix monolith nou EN
