Multi-esthetic abutments

Following the first stage of surgery and therefore after implant osseointegration is achieved, the multi-esthetic abutment (MEA) is used, that is defined as the machined attachment that, after being attached to the crown of the implant, serves as a support for a multiple restoration, thus decreasing the height between the implant connection and the structure connection, and providing a passive adjustment of the structure.

Key featurespme frontier

  • Grade V titanium machining as per ISO-5832 standard.
  • Available in emergency heights from 1.00 to 4.00 mm.
  • One-piece straight abutments in rotary model.
  • Tightened with hex keys:

    RP: B/F 2.00 mm (KYL 0C 0097)

    WP: B/F 2.50 mm (KYL 0C 0098)

  • Impression coping with screw included.
  • Castable with clinic screw included.
  • Temporary cylinder in grade V titanium with clinic screw included.
  • Angled multi-esthetic abutments allow non-parallelism up to 30º.

Connection Frontier EN

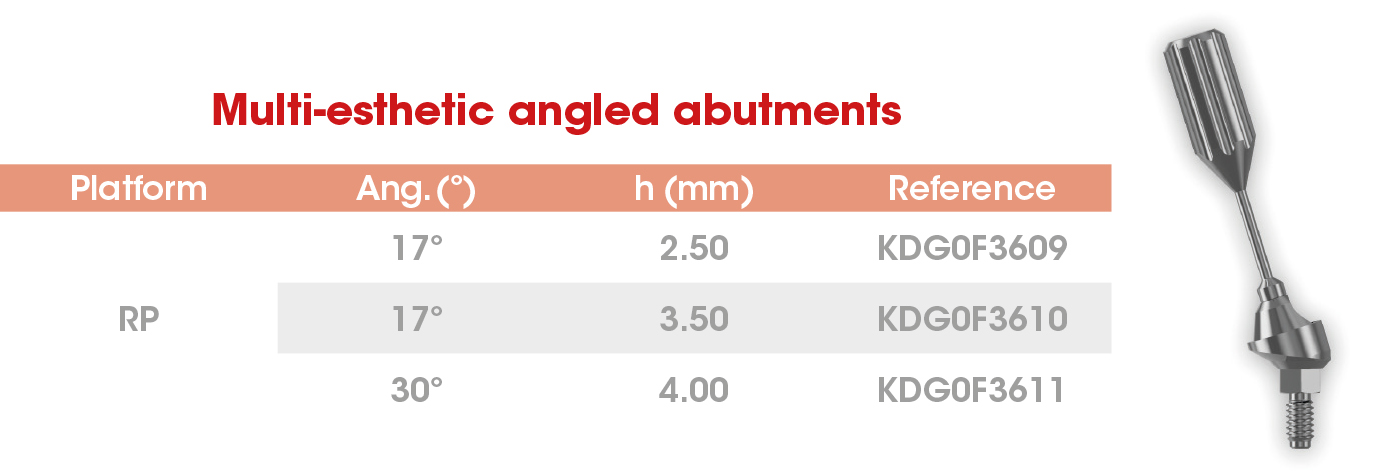

Multi esthetic angled abut Frontier

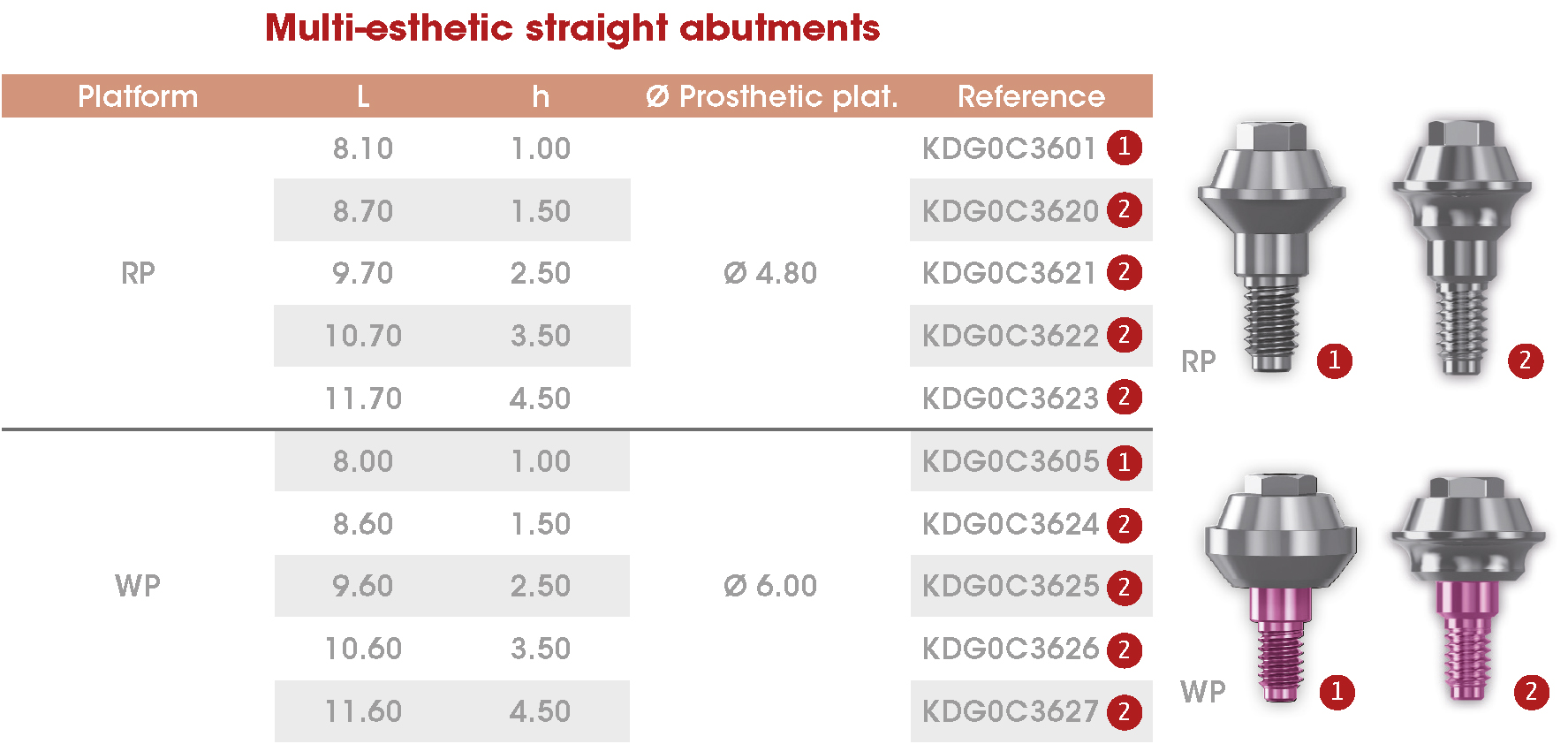

Multi esthetic straight abut Frontier

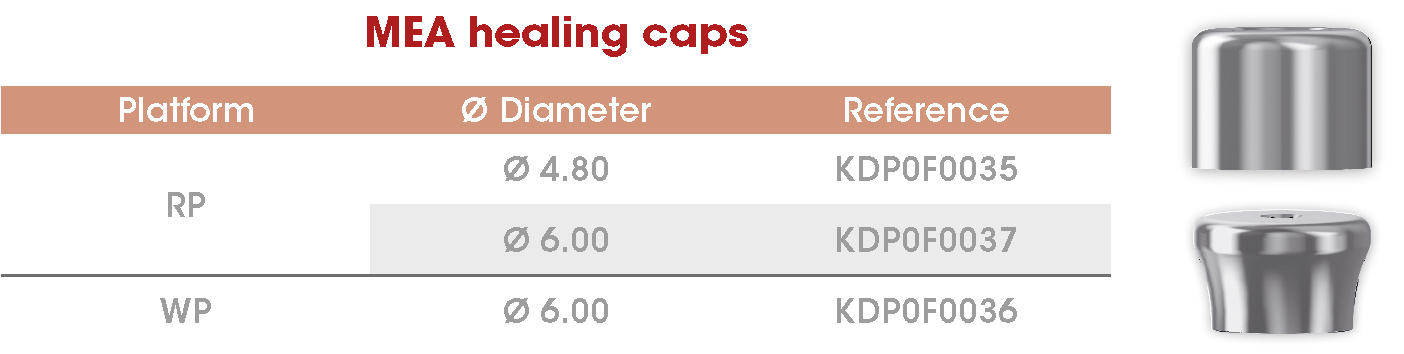

ME healing caps Frontier

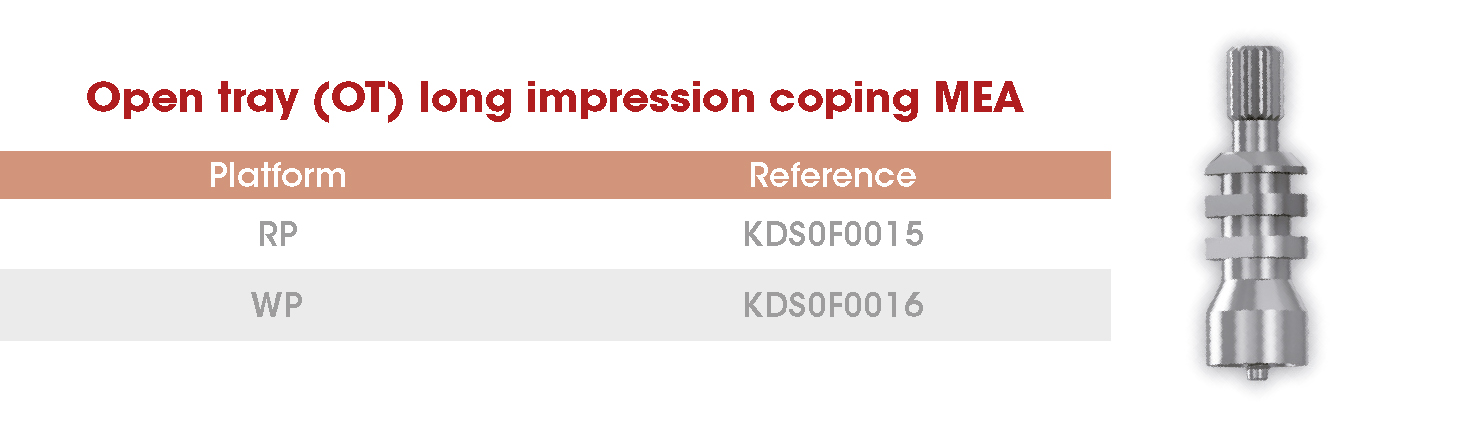

ME impression coping Frontier

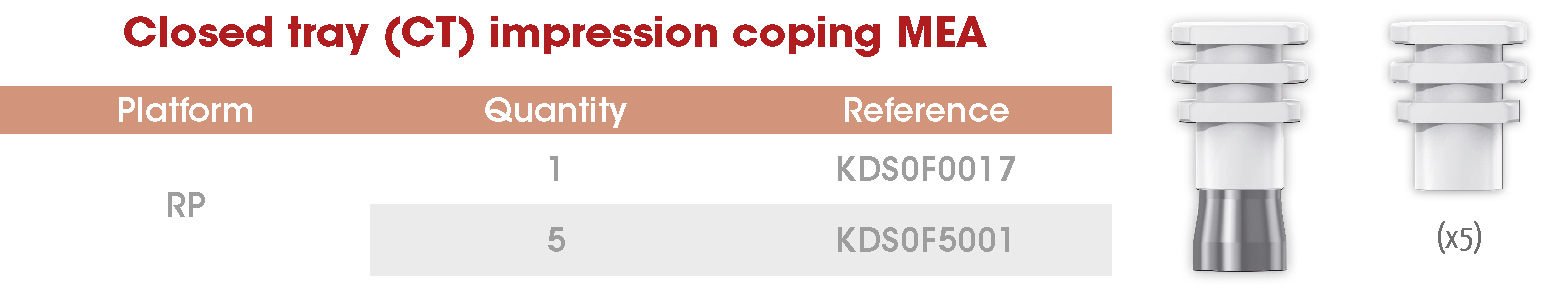

ME impression coping CT Frontier

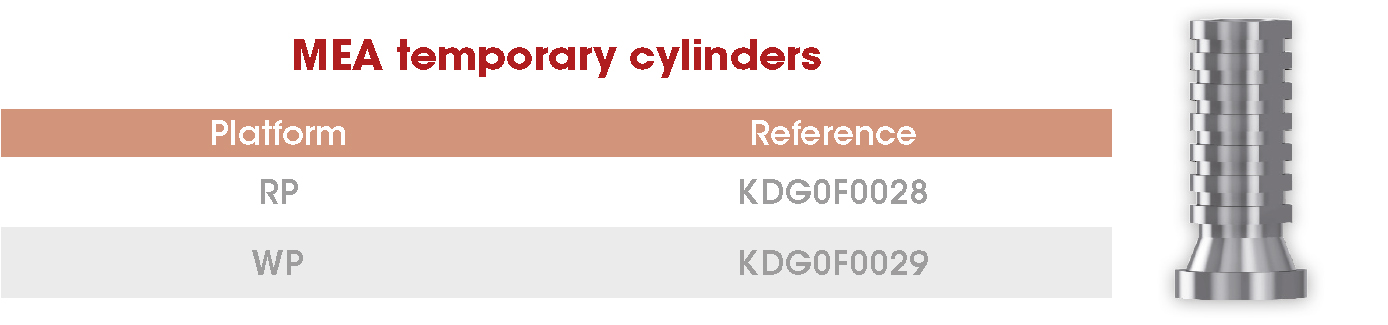

ME temporary cylinders Frontier

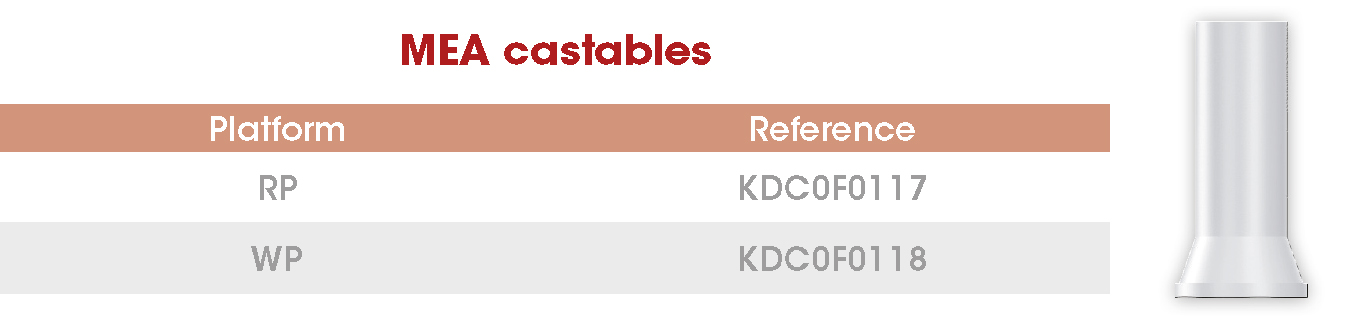

ME Castables Frontier

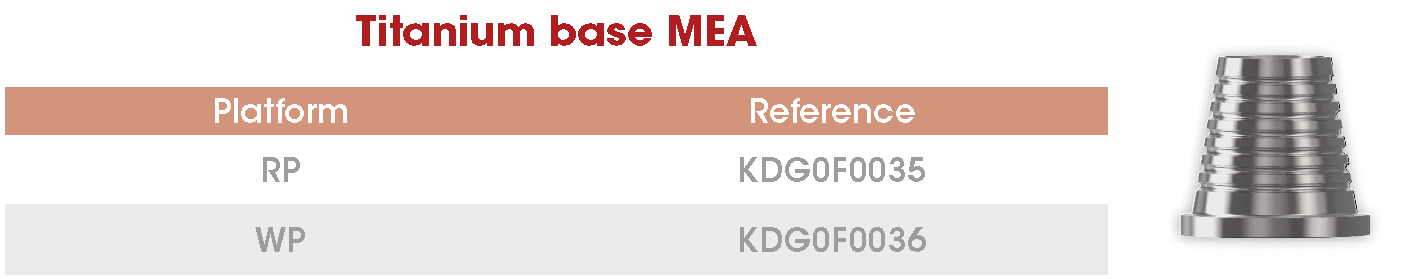

Titanium base MEA Frontier

Titanium scanbody MEA Frontier
