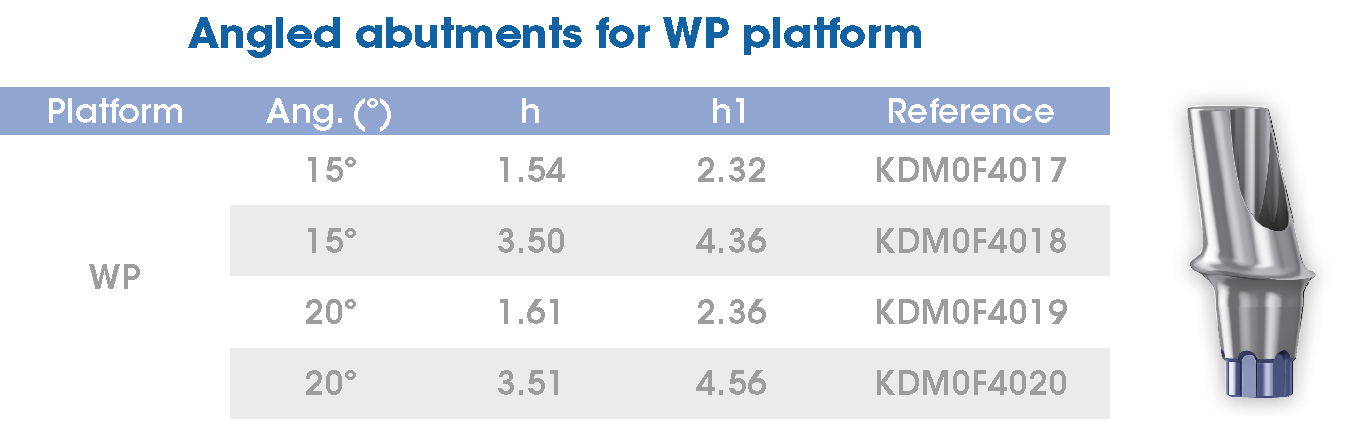

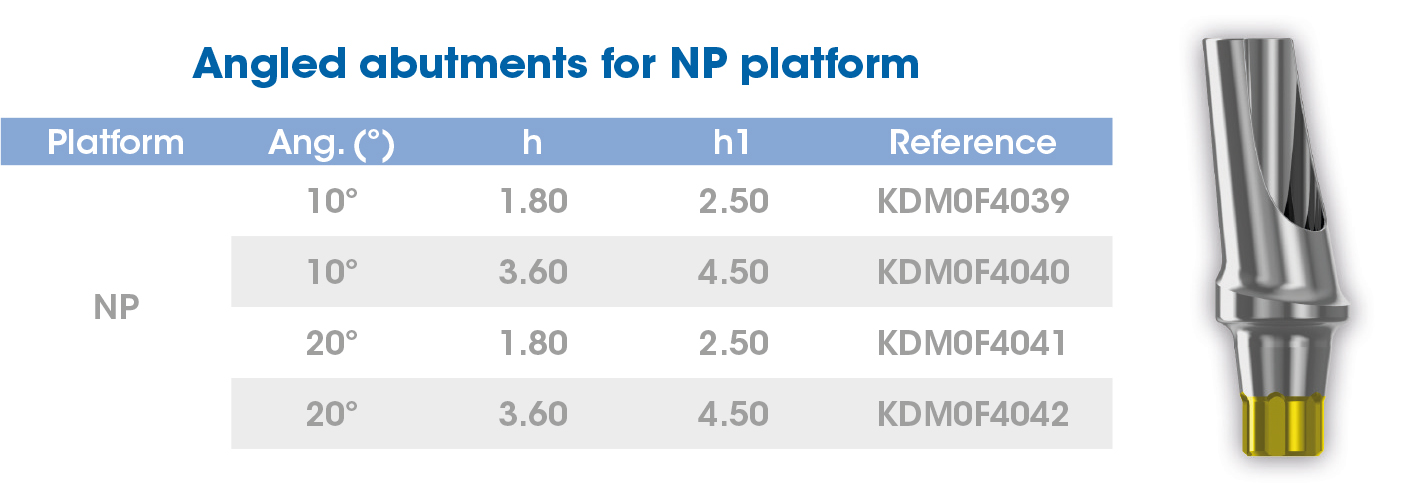

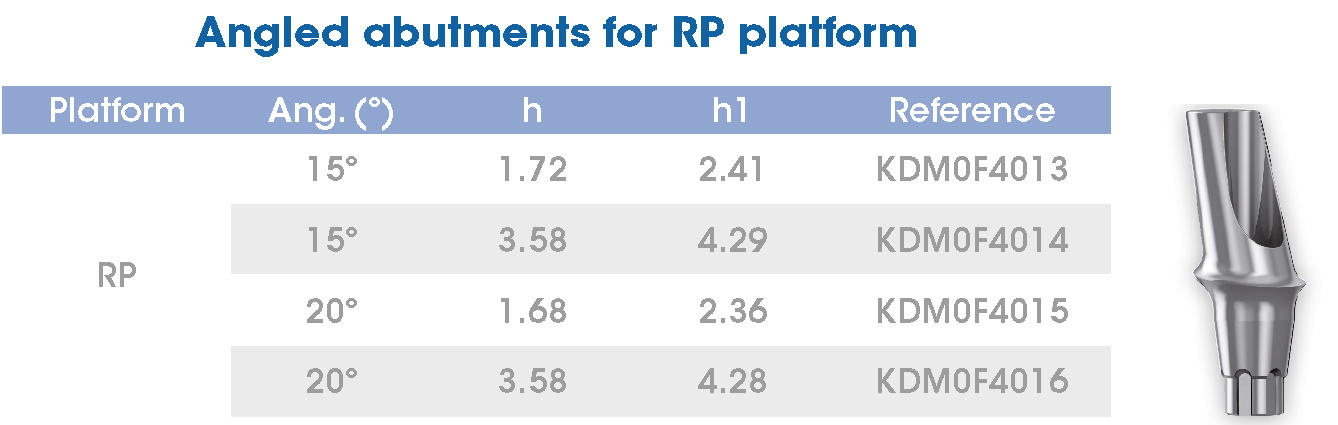

Angled abutments

When it is necessary to correct an extreme angular position of the implant inside the bone structure in relation to adjacent natural or prosthetic teeth, angled abutments should be used, that once mounted and oriented on the implant will allow the parallelization of the new crown with other structures.

Key featuresPilarInclinado

  • Grade V titanium machining as per ISO-5832 standard.
  • Allow non-parallelism correction up to 20 degrees.
  • Clinic screw included.
  • Abutment shoulder adapted to the shape of the gum.
  • Screw tightening torque: 25 N·cm.

Connection Avantgard EN
