Following the first stage of surgery and therefore after implant osseointegration is achieved, the multi-esthetic abutment (MEA) is used, that is defined as the machined attachment that, after being attached to the crown of the implant, serves as a support for a multiple restoration, thus decreasing the height between the implant connection and the structure connection, and providing a passive adjustment of the structure.

Key features

• Grade V titanium machining as per ISO-5832 standard.
• Available in emergency heights from 1.50 to 4.50 mm.

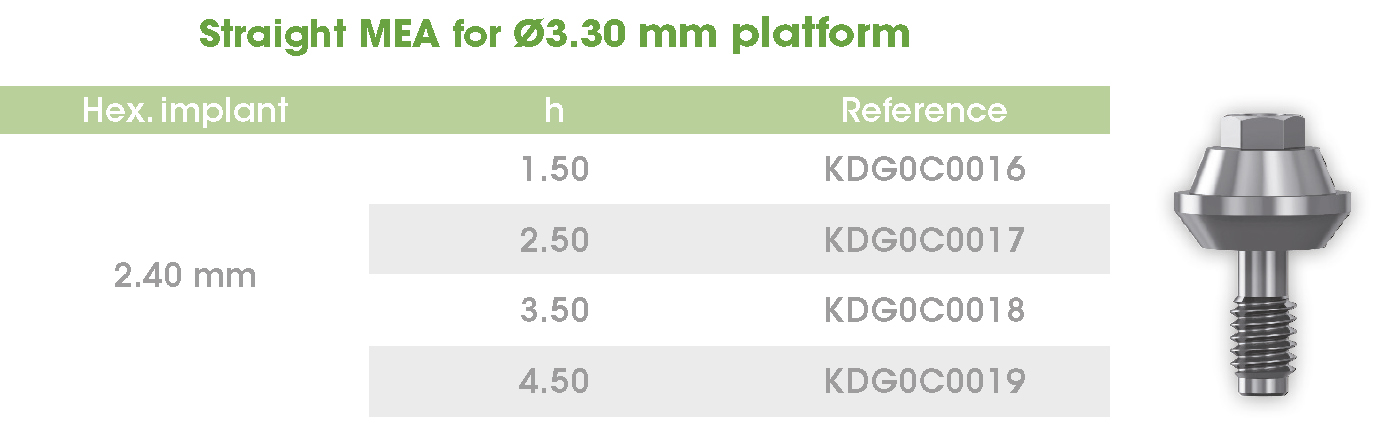

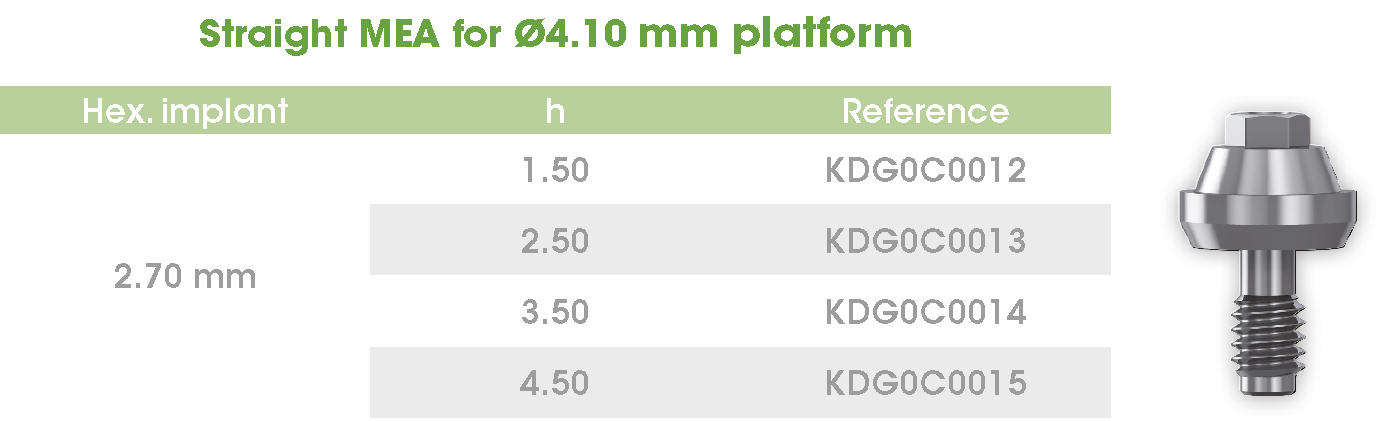

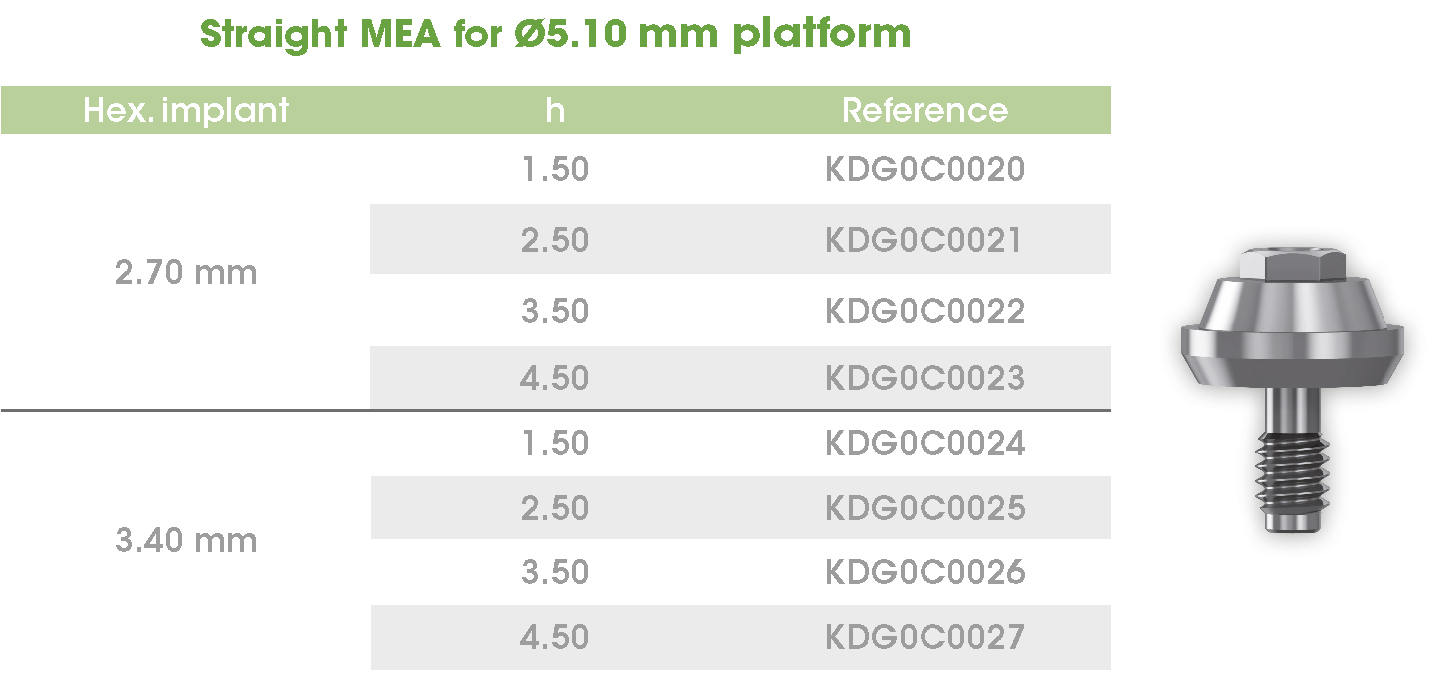

• One-piece straight abutments in rotary model.
• Tightened with hex keys:

    PL-Ø3.30 and Ø4.10: B/F 2.00 mm (KYL0C0097)

    PL-Ø5.10: B/F 2.50 mm (KYL0F0098)

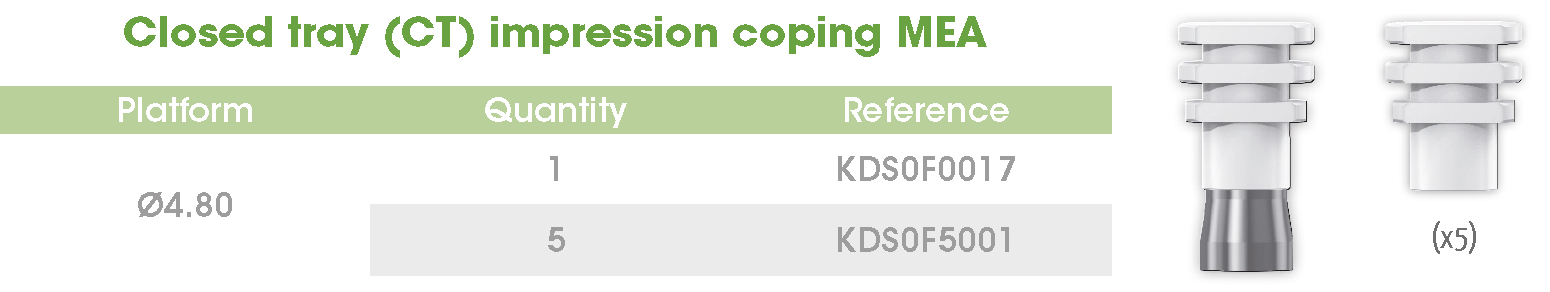

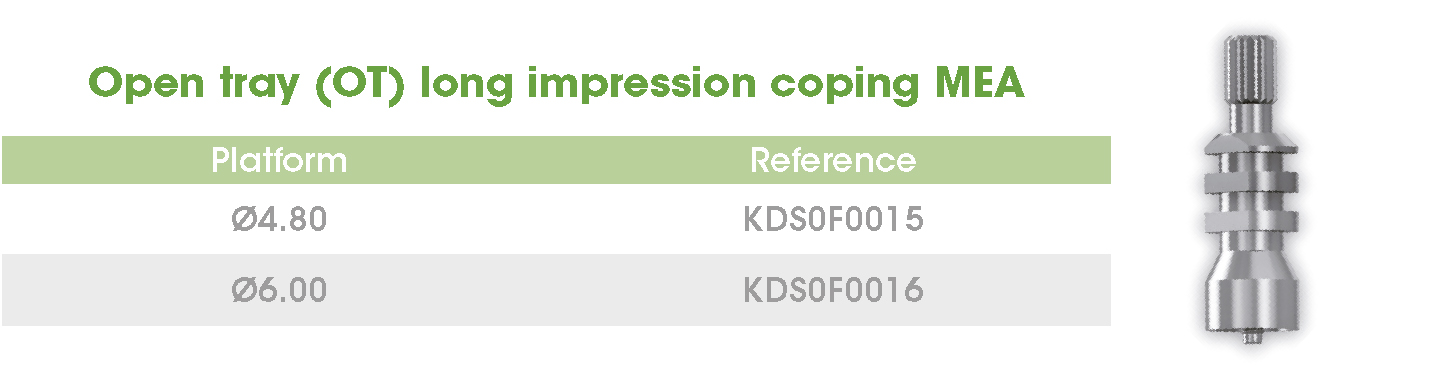

• Impression coping with screw included.

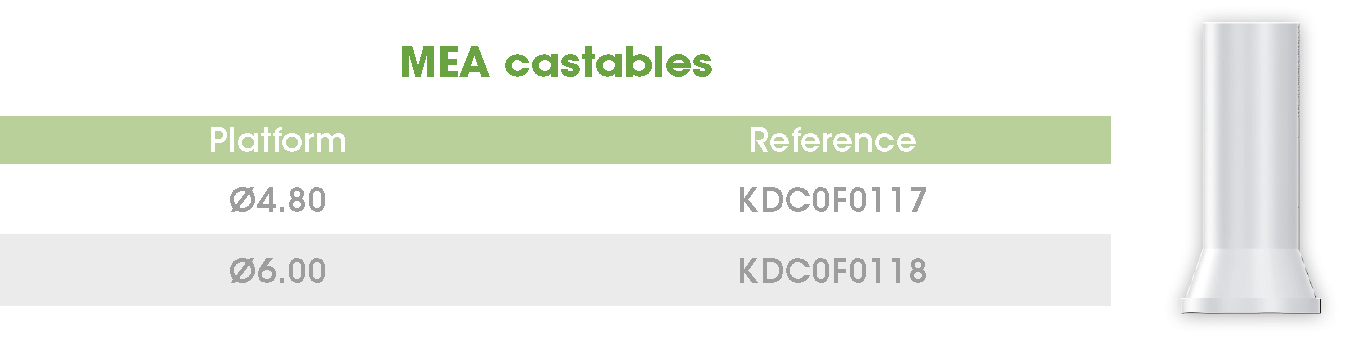

• Castable with clinic screw included.

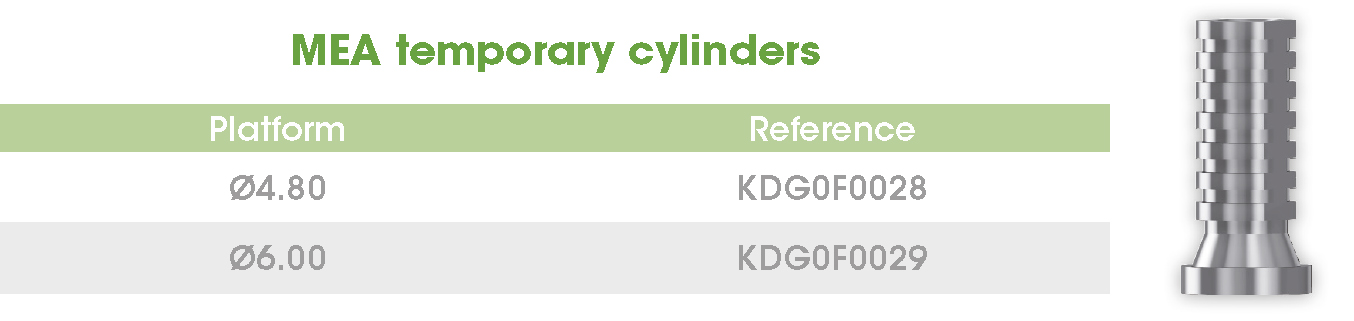

• Temporary cylinder in grade V titanium with clinic screw included.

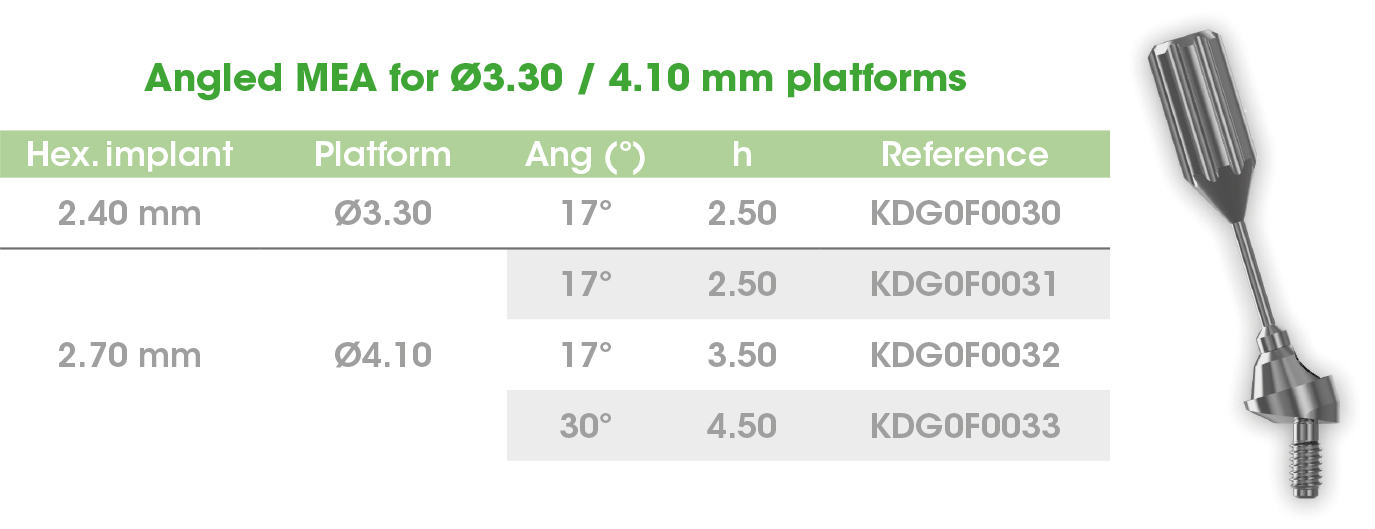

• Angled multi-esthetic abutments allow non-parallelism up to 30º.
