Multi-esthetic abutments

Following the first stage of surgery and therefore after implant osseointegration is achieved, the multi-esthetic abutment (MEA) is used, that is defined as the machined attachment that, after being attached to the crown of the implant, serves as a support for a multiple restoration, thus decreasing the height between the implant connection and the structure connection, and providing a passive adjustment of the structure.

Key featurespme frontier

  • Grade V titanium machining as per ISO-5832 standard.
  • Available in emergency heights from 1.00 to 4.00 mm.
  • One-piece straight abutments in rotary model.
  • Tightened with hex keys:

    RP: B/F 2.00 mm (KYL 0C 0097)

    WP: B/F 2.50 mm (KYL 0C 0098)

  • Impression coping with screw included.
  • Castable with clinic screw included.
  • Temporary cylinder in grade V titanium with clinic screw included.
  • Angled multi-esthetic abutments allow non-parallelism up to 30º.

Connection Frontier EN

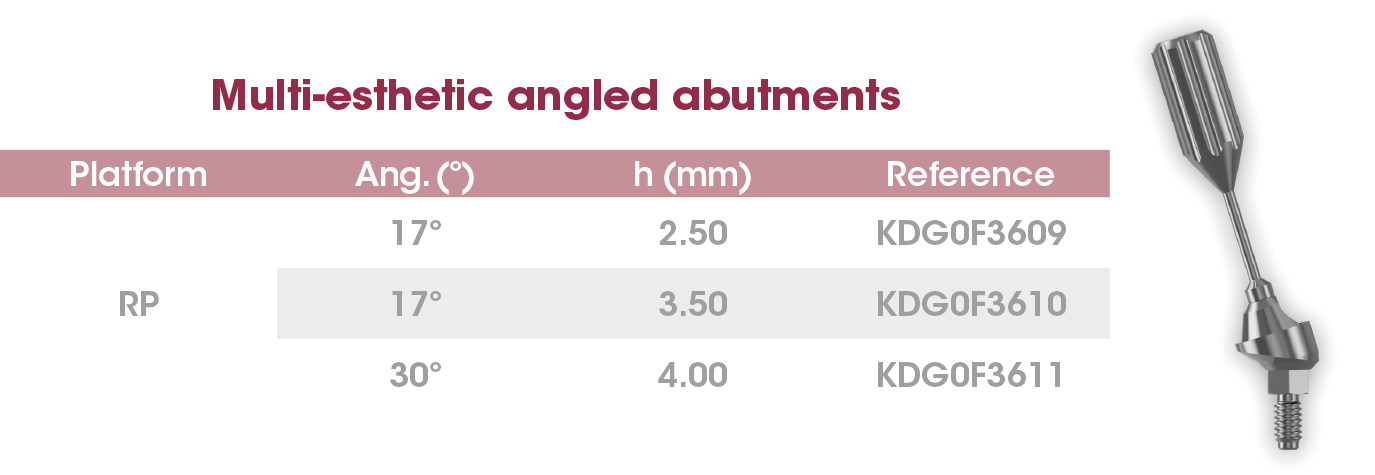

Me angled abut FrontierPEAK

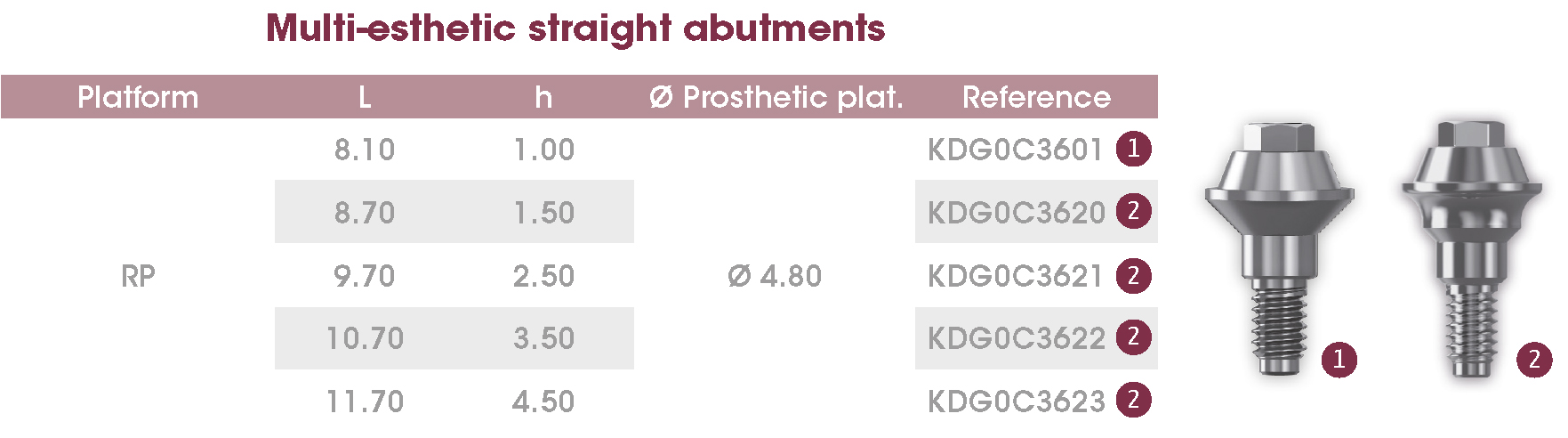

ME straight abut FrontierPEAK

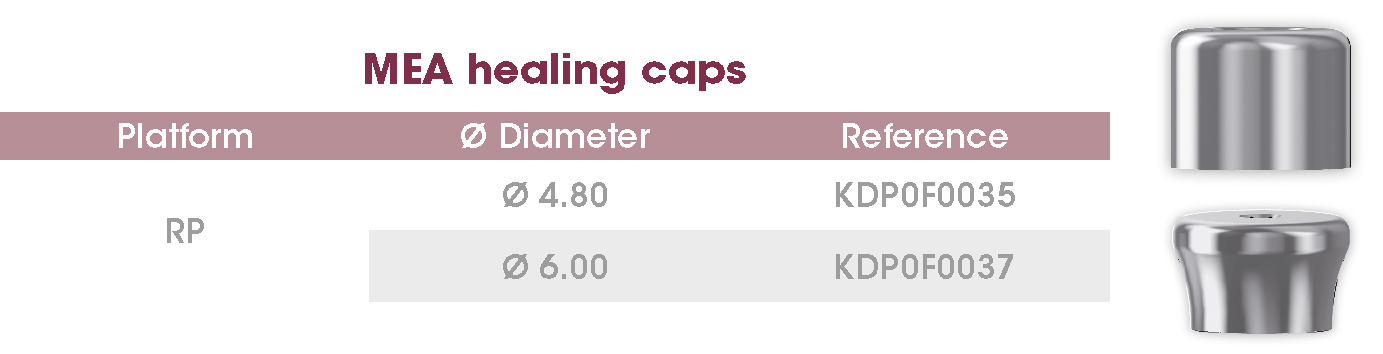

ME healing caps FrontierPEAK

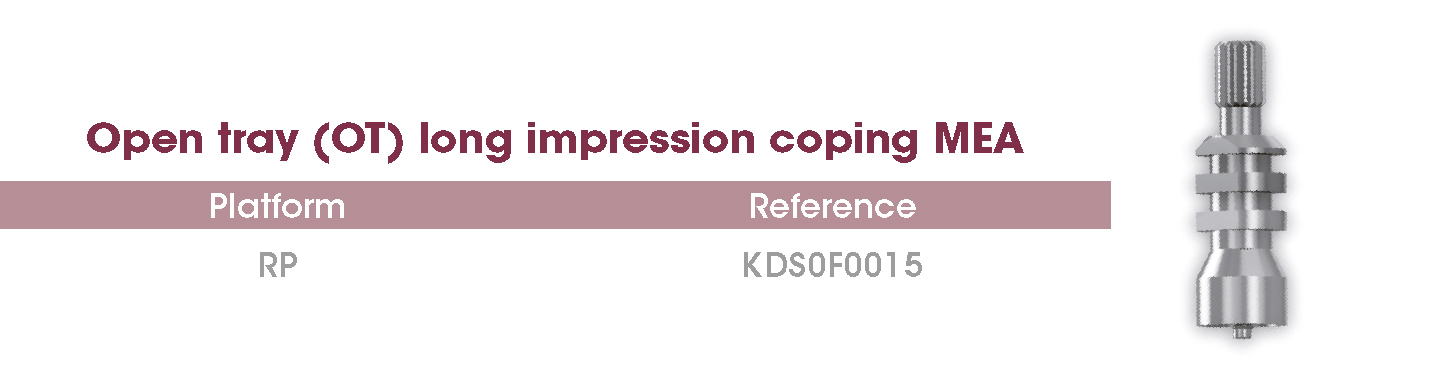

OT imp coping ME FrontierPEAK

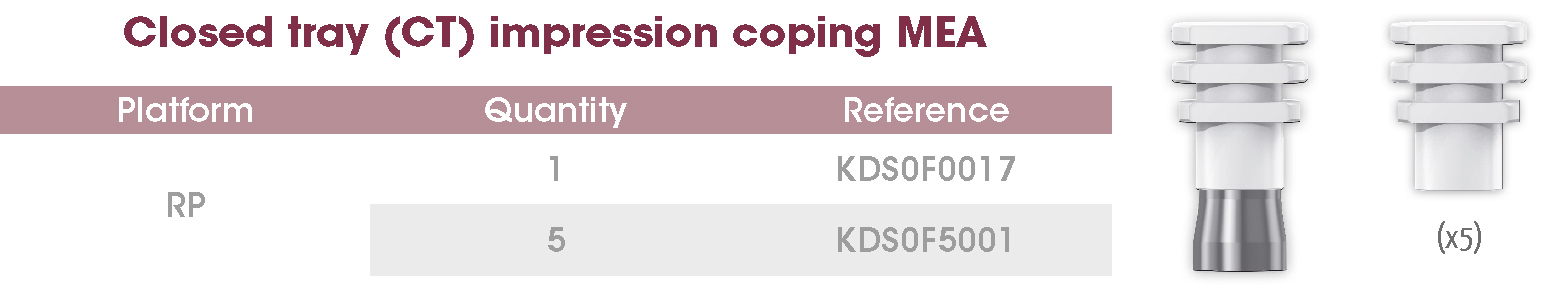

CT imp coping ME FrontierPEAK

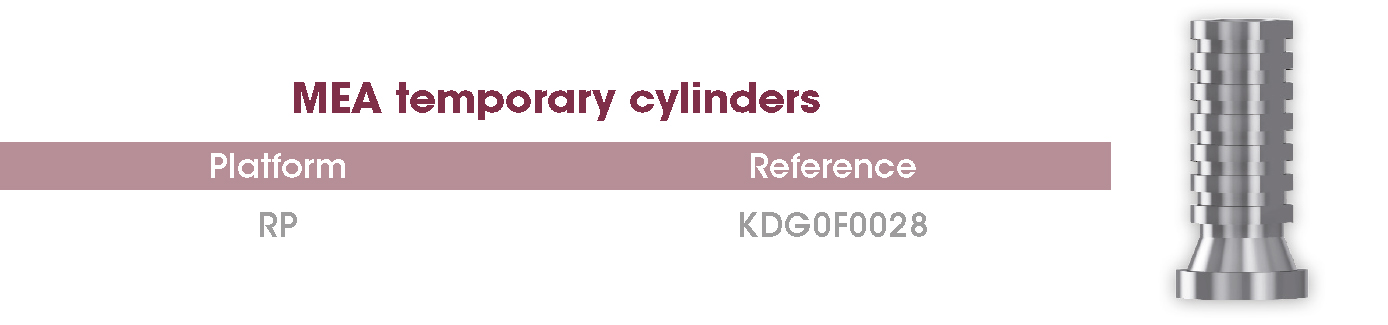

ME temporary cyl FrontierPEAK

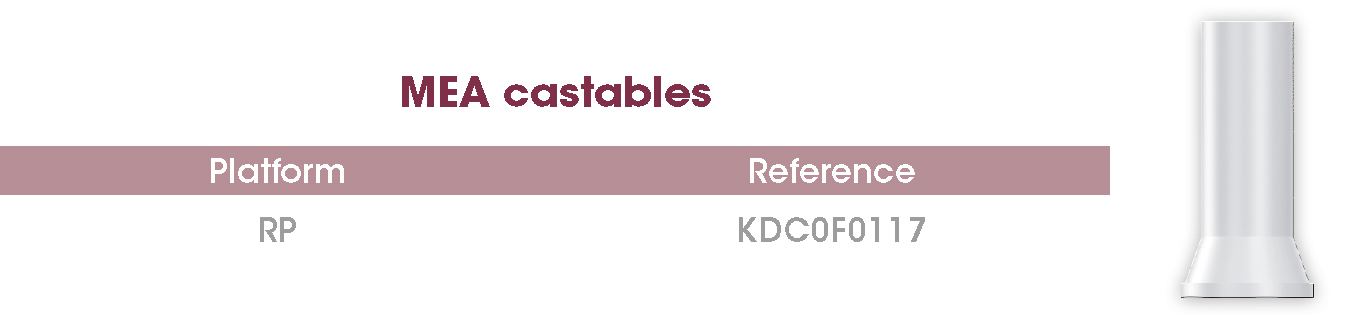

ME castables FrontierPEAK

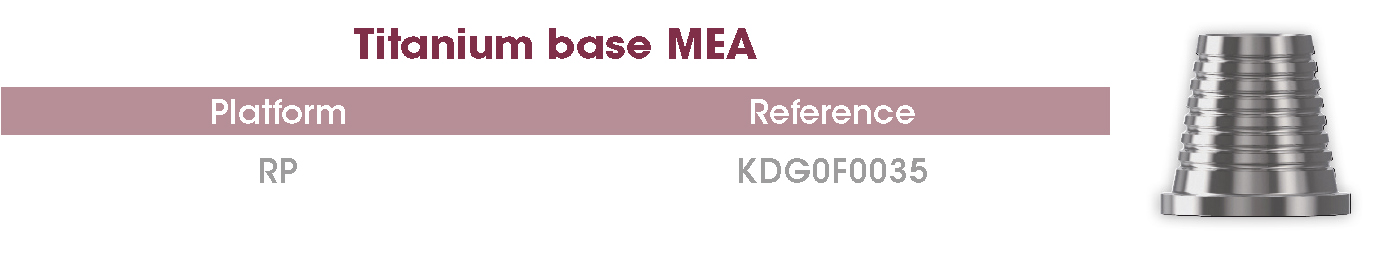

ME titanium base FrontierPEAK

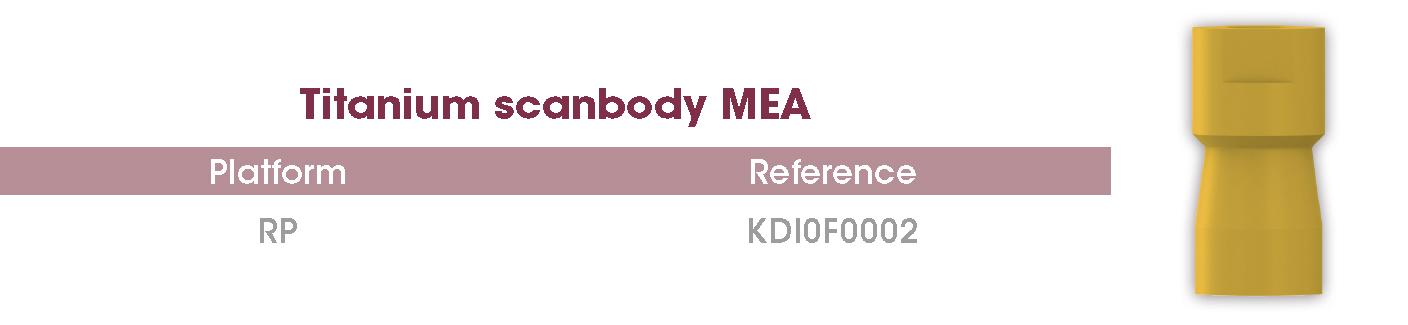

ME titanium scanbody FrontierPEAK
