Ball abutments

Once the healing abutment has formed the mucosal tunnel and the healing abutment has been removed from this location, the corresponding ball abutment is used, which is defined as a machined attachment being fixed to the top of the implant and serving as the retention element for the removable prosthesis, with the previous addition of the retention caps that will be fixed to the top spherical part of the ball abutment.

Key featurespbola frontier

  • Grade V titanium machining as per ISO-5832 standard.
  • Available in emergency heights from 1.00 to 4.00 mm.
  • Pink retention cap and metal container included.
  • Protection disk included.
  • Tightening with b/f 2.45 mm hex wrench, part no.: KYL0C0065.
  • Instruments for caps: Universal handle (RH124ICP), Insertion tool for caps (RH185IAC) and Removal tool for caps (RH091EC).

Connection Frontier EN

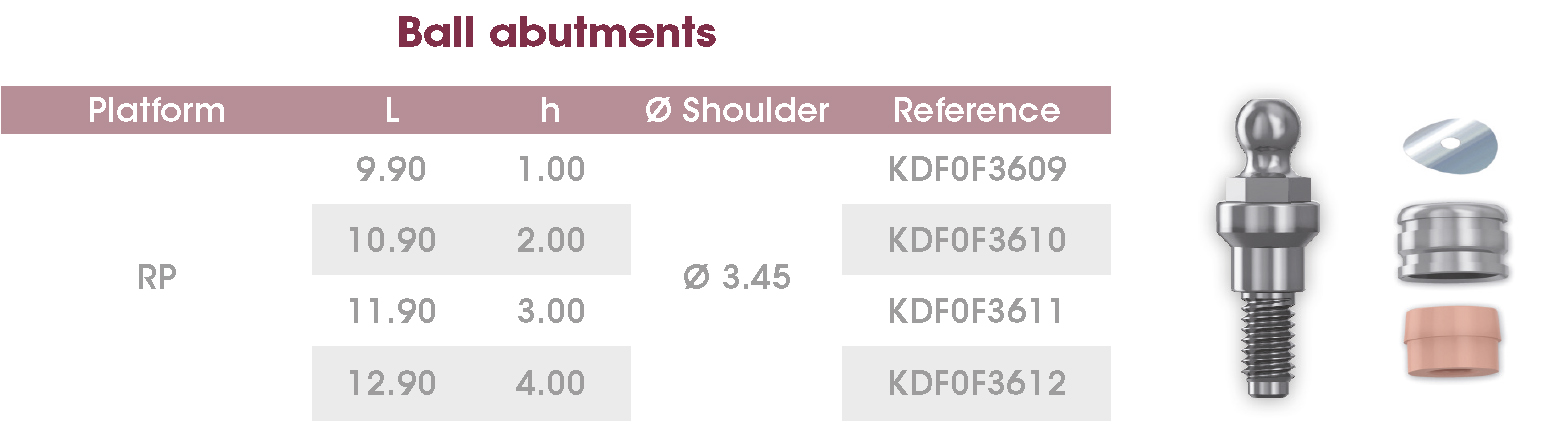

Ball abut FrontierPEAK

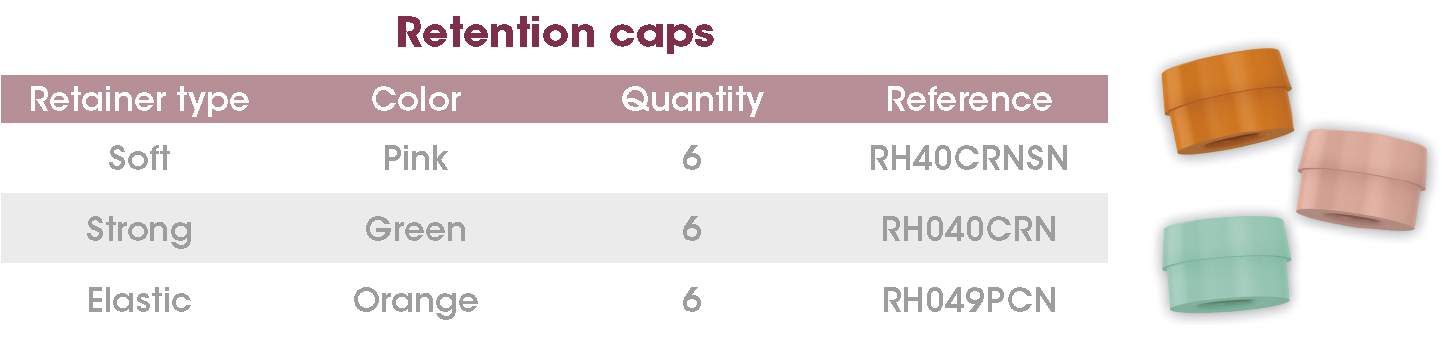

Retention caps FrontierPEAK

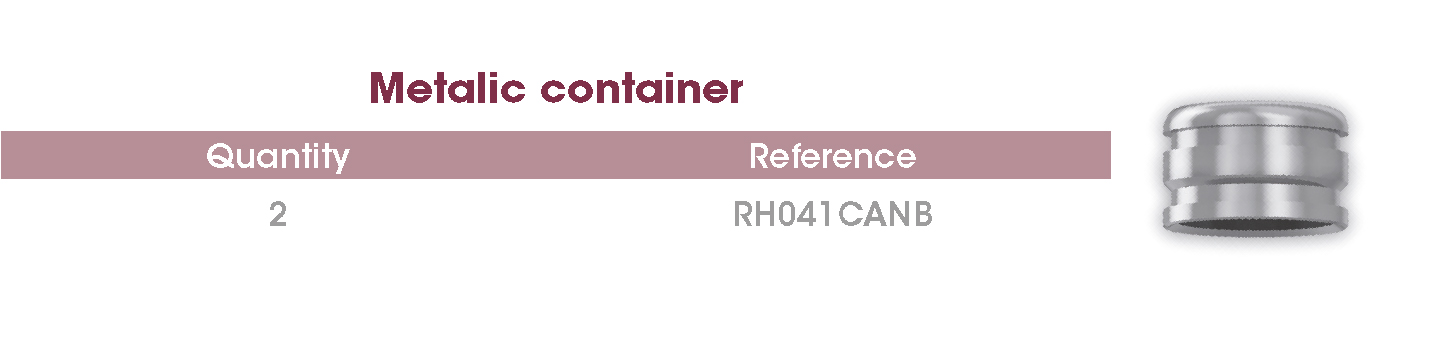

Metalic container FrontierPEAK

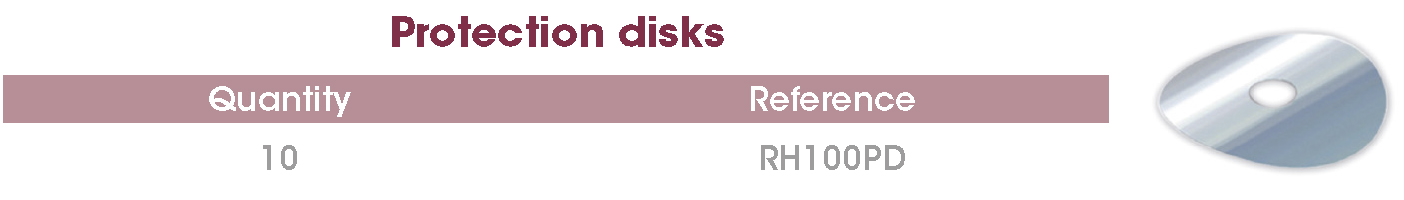

Protection disks FrontierPEAK
